Rockfon® System T24 X DLC™

Elegante, nahezu fugenlose Deckenoptik
Zurück
CMC - Click2-DE

Verbindung

section_-2890

Maße

Referenzprojekte mit Rockfon® System T24 X DLC™

DK, Arboretet, Hørsholm, Claus Francke ApS, School, Rockfon Blanka, X edge, 1200x300, White

Projekt: Das Arboretum

Zum Referenzprojekt
DK, Arboretet, Hørsholm, Claus Francke ApS, School, Rockfon Blanka, X edge, 1200x300, White

Projekt: Das Arboretum

Zum Referenzprojekt
DK, Arboretet, Hørsholm, Claus Francke ApS, School, Rockfon Blanka, X edge, 1200x300, White

Projekt: Das Arboretum

Zum Referenzprojekt
DK, Arboretet, Hørsholm, Claus Francke ApS, School, Rockfon Blanka, X edge, 1200x300, White

Projekt: Das Arboretum

Zum Referenzprojekt
Zurück

Passende Kanten

Verdecktes System Beschreibung
X X Platten mit X-Kante können in eine Unterkonstruktion eingelegt oder mit Befestigungswinkeln direkt an der Rohdecke angebracht werden. Die schräge Kante zwischen den Platten ist kleiner als bei der D-Kante, wodurch eine fugenlosere Optik erreicht werden kann. Platten mit X-Kante erlauben die elegante Integration von Standard-Klimatechnik und Beleuchtungselementen. Jede Platte mit X-Kante kann ausgebaut werden.

Passende Deckenplatten

Deckenplatte Dicke 600 x 600 625 x 625 1200 x 600 1250 x 625 1800 x 600
Rockfon Color-all® 22
Rockfon Blanka® 22

Leistung

Tragfähigkeit Tragfähigkeit

Rockfon® System T24 X DLC™ Click deflection

 Kg/m²
Distance between primary/secondary main runners (mm) Hanger distance (mm) Modulation (mm) Bei einer Gesamtdurchbiegung von...
2.5 mm 4.0 mm
1500/600 (900) 1200 600 x 600 6.3 10.5
1500/600 (900) 1200 600 x 1200 6.3 10.5
1500/600 (900) 1200 1800 x 600 6.3 10.5
1250 1250 625x625 8.0 13.5
1250 1250 1250x625 8.7 14.5
1800/600 (900) 1200 600 x 600 - 5.7
1800/600 (900) 1200 1200 x 600 - 5.7
1800/600 (900) 1200 1800 x 600 - 5.7
Korrosionsbeständigkeit Korrosionsbeständigkeit Klasse B (EN13964)
Revisionierbarkeit Revisionierbarkeit Im Rockfon System T24 X DLC montierte Deckenplatten sind revisionierbar
Feuerwiderstand Feuerwiderstand Diverse Rockfon Deckensysteme wurden gemäß der europäischen Norm DIN EN 13501-2 und/oder anderen nationalen Normen getestet und klassifiziert. Informationen hierzu erhalten Sie bei Rockfon.
Back

Rockfon® System T24 X DLC™ Click deflection

 Kg/m²
Distance between primary/secondary main runners (mm) Hanger distance (mm) Modulation (mm) Bei einer Gesamtdurchbiegung von...
2.5 mm 4.0 mm
1500/600 (900) 1200 600 x 600 6.3 10.5
1500/600 (900) 1200 600 x 1200 6.3 10.5
1500/600 (900) 1200 1800 x 600 6.3 10.5
1250 1250 625x625 8.0 13.5
1250 1250 1250x625 8.7 14.5
1800/600 (900) 1200 600 x 600 - 5.7
1800/600 (900) 1200 1200 x 600 - 5.7
1800/600 (900) 1200 1800 x 600 - 5.7
Back
Back
Back

Wandanschluss-möglichkeiten

08

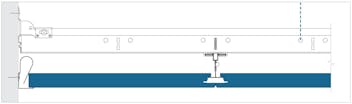

Wandanschluss mit Aluminium-Stufenwandwinkel

08

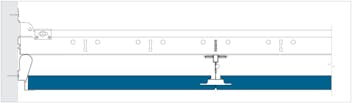

Wandanschluss mit Wandwinkel

Zurück

Winkel und Zubehör

Tragschiene

Component Länge Height Width Product number Farben Verpackung
Tragschiene
2800.tif Tragschiene T24 Klick / Hak 3750 38 24 T24 MR CL&HK Multiple Colors See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 24 Distance between slots: 78,125 / 156,25 / 22 x 156,25 / 78,125

Querschiene

Component Länge Height Width Product number Farben Verpackung
Querschiene

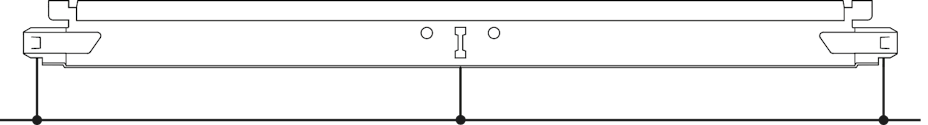

-2892.tif Querschiene T24 Klick 625 38 24 T24 CT CLICK Multiple Colors See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 312,5 / / / 312,5
-2892.tif Querschiene T24 Klick 600 38 24 T24 CT CLICK Mattweiß 11 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 300 / / / 300

Wandwinkel

Component Länge Height Width Product number Farben Verpackung
L-Winkel
-1420.tif L-Wandwinkel 24x24 mm 3050 24 24 L24x24 Multiple Colors See Packaging Dimensions
-1420.tif L-Wandwinkel 24x24 mm 3050 24 24 L24x24 Weiss 001 See Packaging Dimensions
Schattenwinkel
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png Stufenwandwinkel 15x15x10x15 mm 3050 15 10 W10x15 Multiple Colors See Packaging Dimensions

Zubehör

Component Länge Product number Verpackung
DLC Klammer
123.tif DLC Klammer DLC See Packaging Dimensions
Abstandhalter
826.tif Abstandhalter für Modul 600 und 625 mm - lackiert 656 SBH 600/625 See Packaging Dimensions
Druckfeder
Wall spring fixt_v3.tif Wall Spring FIXT WSF See Packaging Dimensions
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 24 Distance between slots: 78,125 / 156,25 / 22 x 156,25 / 78,125
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 312,5 / / / 312,5
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 300 / / / 300
Zurück
Zurück
Zurück
Zurück
Zurück
Zurück
Zurück

Downloads

documents





pdf
Rockfon® System T24 X DLC™ | Montagehinweise
Rockfon® System T24 X DLC™ | Montagehinweise

pdf
DoP-RFN-PTLR-A02 - L-Wandwinkel 24x24 mm
DoP-RFN-PTLR-A02 - L-Wandwinkel 24x24 mm

pdf
DoP-RFN-PTW-A02 - Stufenwandwinkel 15x15x10x15 mm
DoP-RFN-PTW-A02 - Stufenwandwinkel 15x15x10x15 mm

pdf
DoP-RFN-T2438MD-A02 - Tragschiene T24 Klick / Hak
DoP-RFN-T2438MD-A02 - Tragschiene T24 Klick / Hak

pdf
DoP-RFN-T2438MC-A02 - Querschiene T24 Klick
DoP-RFN-T2438MC-A02 - Querschiene T24 Klick

pdf
DoP-RFN-ACCDLCCLIP-A02 - DLC Klammer
DoP-RFN-ACCDLCCLIP-A02 - DLC Klammer

pdf
DoP-RFN-ACCSPACERBAR-A02 - Abstandhalter für Modul 600 und 625 mm - lackiert
DoP-RFN-ACCSPACERBAR-A02 - Abstandhalter für Modul 600 und 625 mm - lackiert

pdf
DoP-RFN-ACCVA-D03 - Wall Spring FIXT
DoP-RFN-ACCVA-D03 - Wall Spring FIXT

pdf
DoP-RFN-0140-041-4 - Rockfon Hub®
DoP-RFN-0140-041-4 - Rockfon Hub®

pdf
DoP-RFN-0125-041-5 - Rockfon Hub®
DoP-RFN-0125-041-5 - Rockfon Hub®
